Confocal Microscope

Upgrade epi-fluorescent microscope to a confocal microscope for 3D slice function with high imaging speed and high-definition images instead of relying on resources of the core facility center. Super-resolution and Raman spectrum expansion modules boost the capability of your cutting-edge research!


  • Suitable for various mainstream microscopes:Nikon / Zeiss / Leica / Olympus
  • Can be converted to independent modular system
  • High-speed and high-resolution imaging

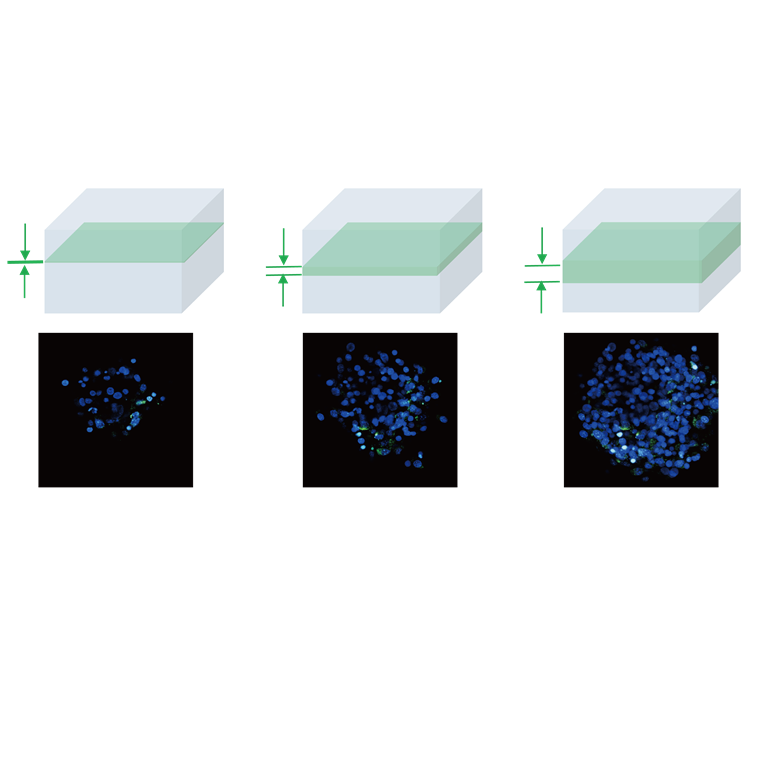

  • Three-dimensional optical slice fluorescence image
  • Able to adjust acquisition parameters along the depth for further penetration, such as laser intensity, detector gain, signal gain, signal offset.
  • Support various types of lasers
  • Convenient super-resolution upgrade module


Max. Resolution4096 x 4096Galvo : 4096 x 4096
Resonant : 1024 x 1024
Frame Rate1 fps ( @512 x 512)30 fps ( @512 x 512)
Max. input channels43
Applicable laser wavelength405 nm / 488 nm / 532 nm / 561 nm / 640 nm
DetectorsPMT / GaAsP
Z Scanning Speed10 layers / sec
Remark :
1. CGS : Confocal Galvo Scanner
2. CGRS : Confocal Galvo Resonant Scanner

Expansion Module

  • Super-resolution upgrade module
  • FLIM inspection module
  • Two-Photon imaging
  • Raman spectroscopy
  • Motorized XY Stage
