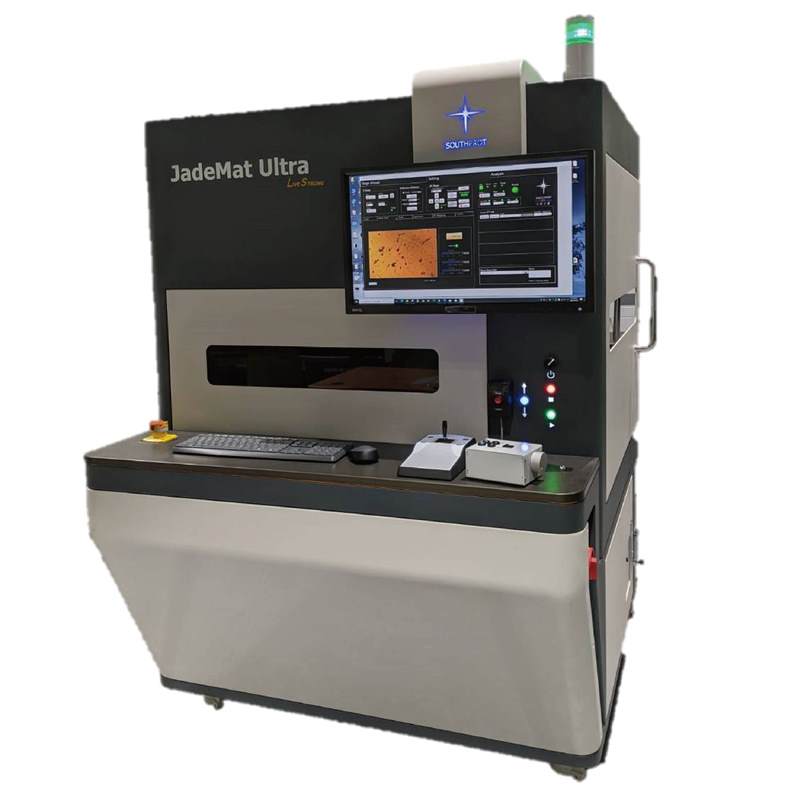

JadeMat-PV

Perovskite

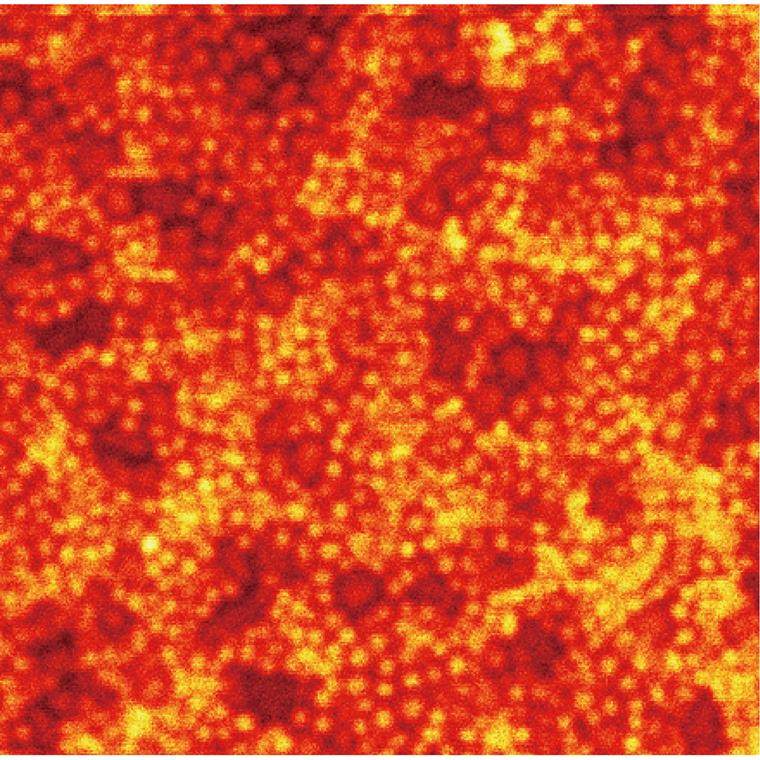

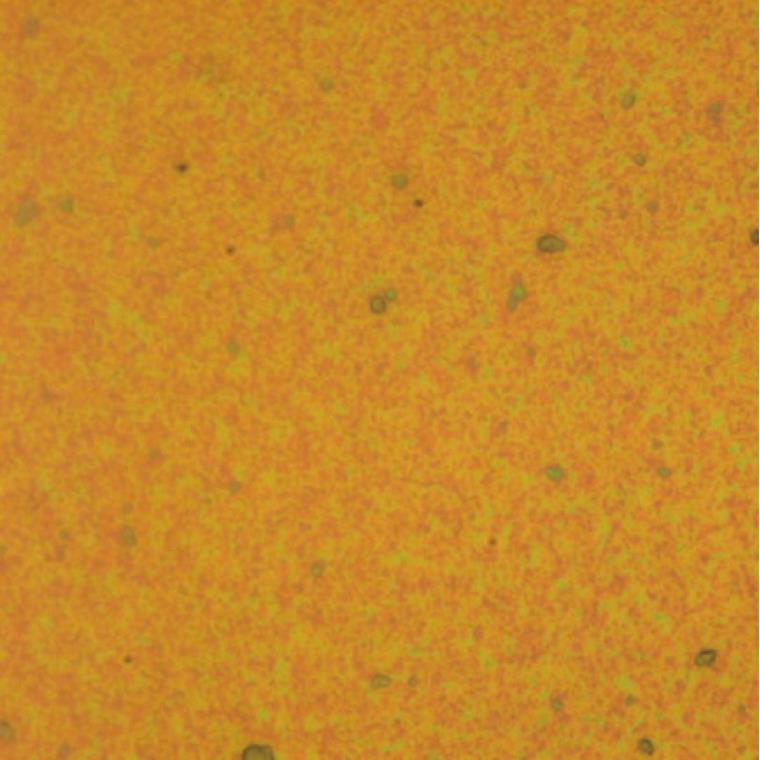

JadeMat–Perovskite is an optimal module for perovskite material optical inspection. It performs well for major optical inspections, such as high-resolution grain imaging, non-destructive film-forming uniformity testing, and high-speed photoelectric efficiency identification.

Features

  • High-speed, high-resolution spectrum mapping(increase experimental efficiency by 20x)
  • Non-destructive spectral acquisition mode
  • Fully automatic optical switching
  • Accompanying with related module for autofocus
  • User-friendly analyzing software: peak wavelength, peak intensity, FWHM, selected band imaging, and spectral information statistics
  • Convenient super-resolution upgrade module

Specifications

#FIRST NAMELAST NAMEUSER NAMEDATE
Max. resolution4096 x 4096
Frame rate1 fps ( @512 x 512)
Applicable laser wavelength266 - 1064 nm
Applicable laser typeCW、Pulse
DetectorPMT
Single-photon counter module350 - 900 nm / 400 - 1050 nm
Objective lens10x, 50x (options for all kinds of application)

Expansion Module

  • Digital optics OAM module
  • Super-resolution upgrade module
  • Motorized nose piece module
  • Autofocus module
  • Long working distance objective lens

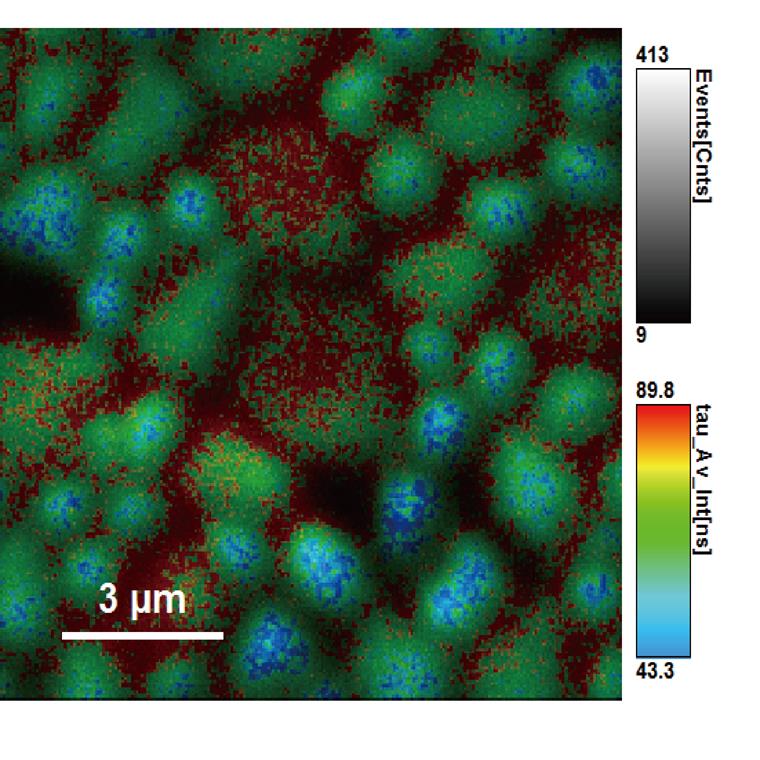

  • TRPL / FLIM inspection module
  • Electrical inspection module
  • TPVC module
  • Super-resolution module
  • Two-photon module
  • Temperature control module
  • Magnetic field module
  • Motorized XY stage
