JadeDot-FM

Fourier Microscope 5-in-1 Illumination Mode Microscopy

The world’s first software-defined digital light field microscope which can perform at least 4 traditional imaging modes with one optical set-up. Images of different characteristics can be weighed and superimposed into one image with much richer information. JadeDot-FM is The microscope you want to have for your image analysis.

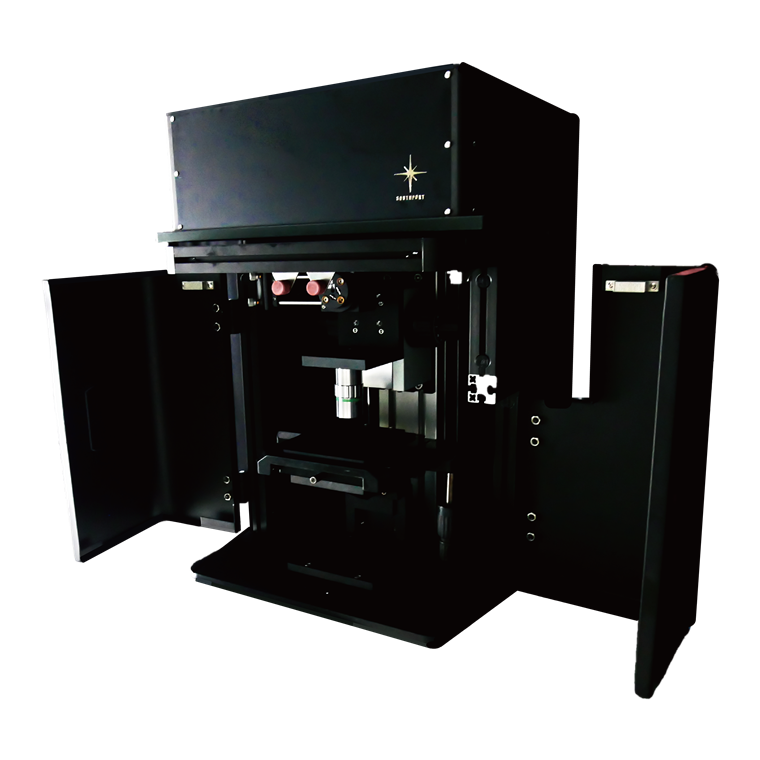

Southport - JadeDot-FM

Features

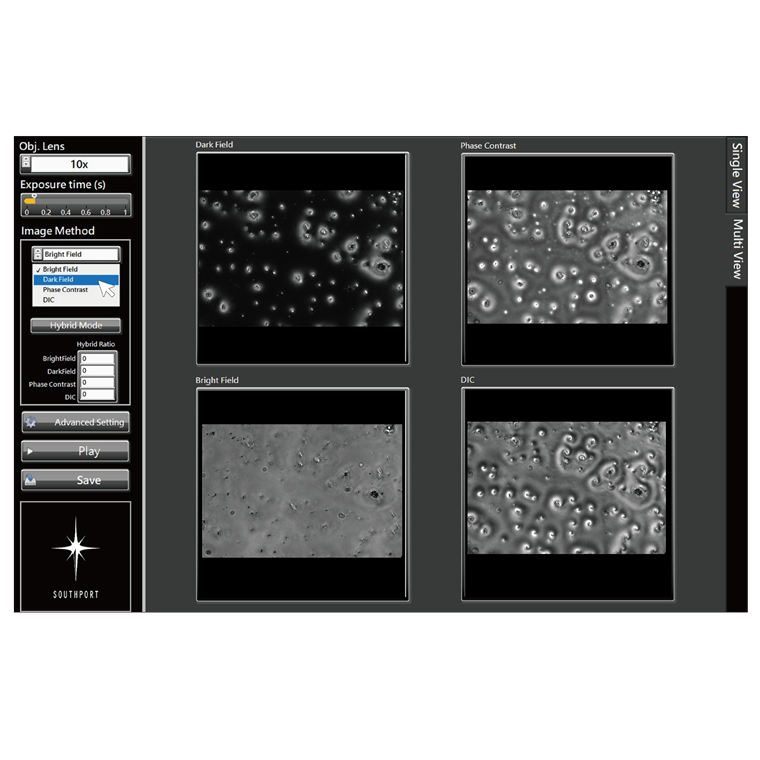

  • Utilize digital switchable optical filter for bright field, darkfield, phase contrast, DIC, enhanced edge …etc.

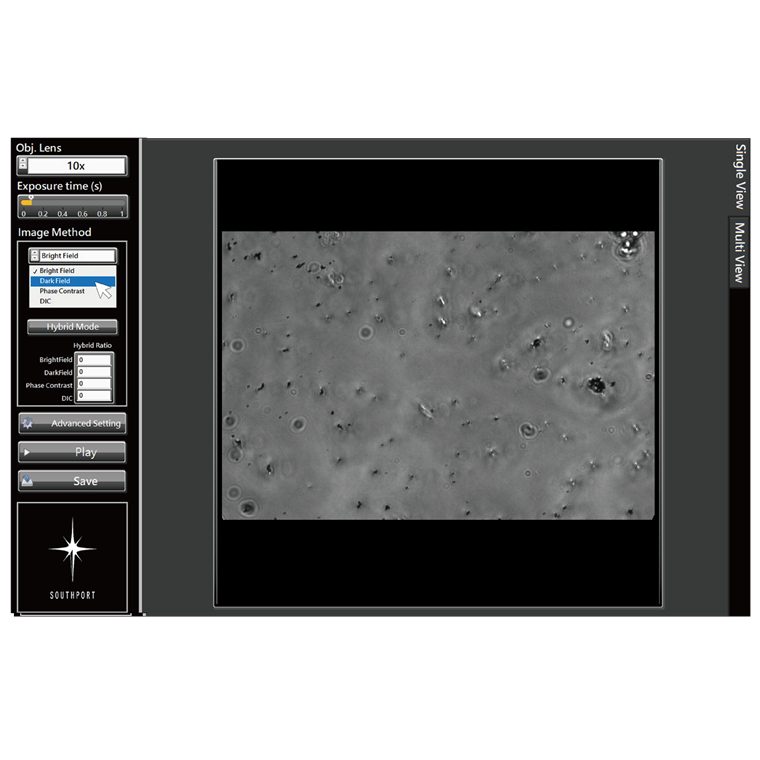

  • Switches various imaging functions by one touch without changing the path of light.
  • Switches 30 functions per second

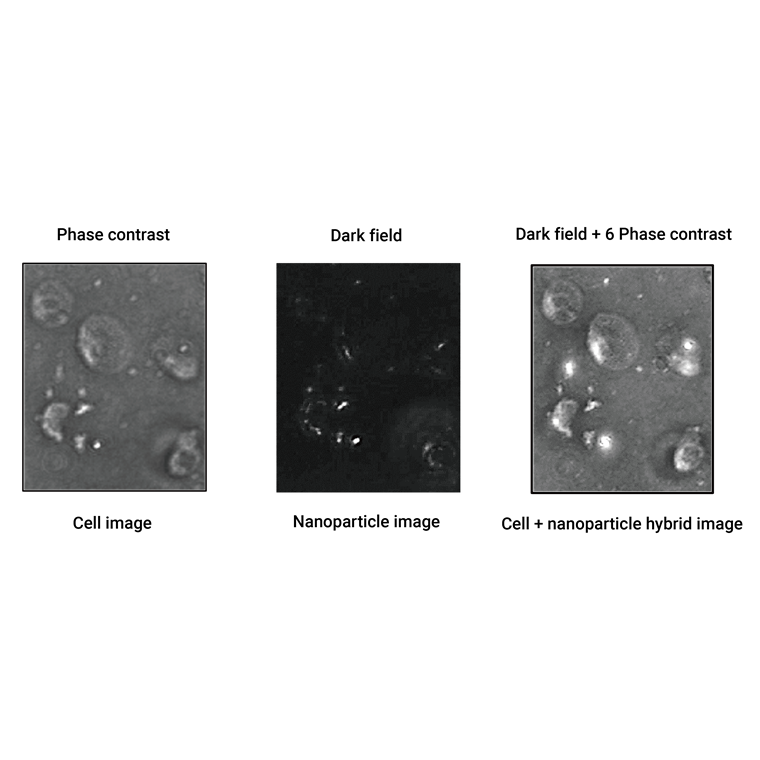

  • By hybrid imaging technology records all characteristics of the sample in one image.
  • Supports RGB mixed color images
  • Applications : Biomedical imaging, automatic optical inspection(AOI), AI assist examination, AI reinforcement learning
  • Can be converted to the software-defined independent microscope system
Southport - Modules for Academic and Industrial R&D -

Southport - Modules for Academic and Industrial R&D -

Southport - Modules for Academic and Industrial R&D -


Specifications

#FIRST NAMELAST NAMEUSER NAMEDATE
Image acquisition mode switching speed30 mode/s
Applicable laser wavelength450 nm / 515 nm / 638 nm
SoftwareJadeDot-FM
Illumination typeTransmission Type / Reflection Type

Expansion Module

  • Various of objective lens
  • Nose Piece Module
  • Motorized Z Stage
  • Motorized XY Stage

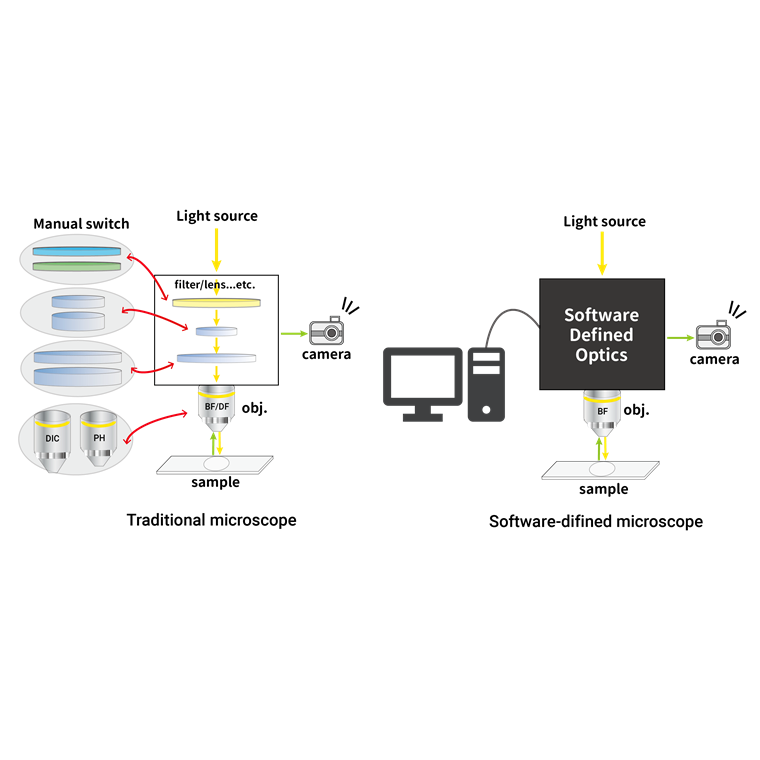

Southport - JadeDot-FM Fourier Microscope 5-in-1 Illumination Mode Microscopy Module matching diagram
