SP-PMT

Photomultiplier Tube Detector

SP-PMT Detector is the best signal detector for the ultra-low light source, covering the maximum dynamic range available for PMT. Work well with different types of acquisition systems. SP-PMT is suitable for various of wavelength ranges, and multiple types of optical detection.

Features

  • Large sensing area
  • Multiple wavelength detection ranges
  • Well packaged design, shielding external noise
  • High-frequency circuit embedded, output signal without distortion
  • Upgrade Low-Temperature Module to reduce noise and dark count
  • Three Output Signal Options:1.Current + Pulse Output 2.TTL Output 3.Voltage output

Specifications

#FIRST NAMELAST NAMEUSER NAMEDATE
Rise Time0.6 nsec (Typ.)

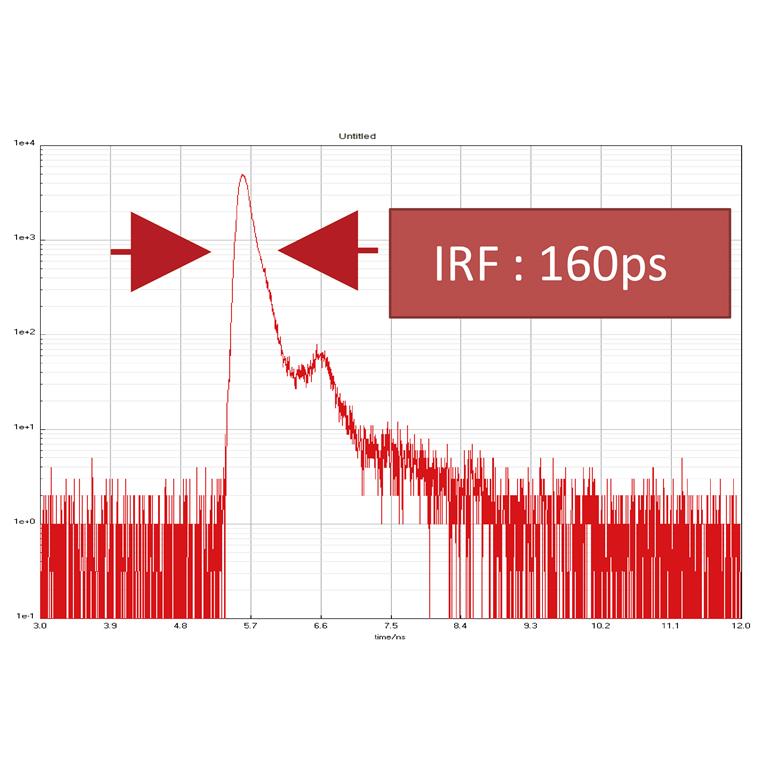

IRF<160 psec (Typ.)
Detection range-VIS : 230 nm - 700 nm /
-NIR1 : 230 nm - 870 nm /
-NIR2 : 185 nm - 900 nm /
-EXR : 230 nm - 920 nm
Dark Count-VIS : <50 cps / -NIR1 : <900 cps /
-NIR2 : <500 cps / -EXR : <6000 cps
ConnectorSMA
Pulse output impedance50 Ohm

Expansion Module

  • TTL Conversion Module
  • Gain control module
  • Overload protection circuit
  • Shading shutter
  • Amplifier
  • Pulse inverter
